1550nm Pulsed fiber laser light source module Laser radar diode lidar diode

1550nm Pulsed fiber laser light source module Laser radar diode lidar diode

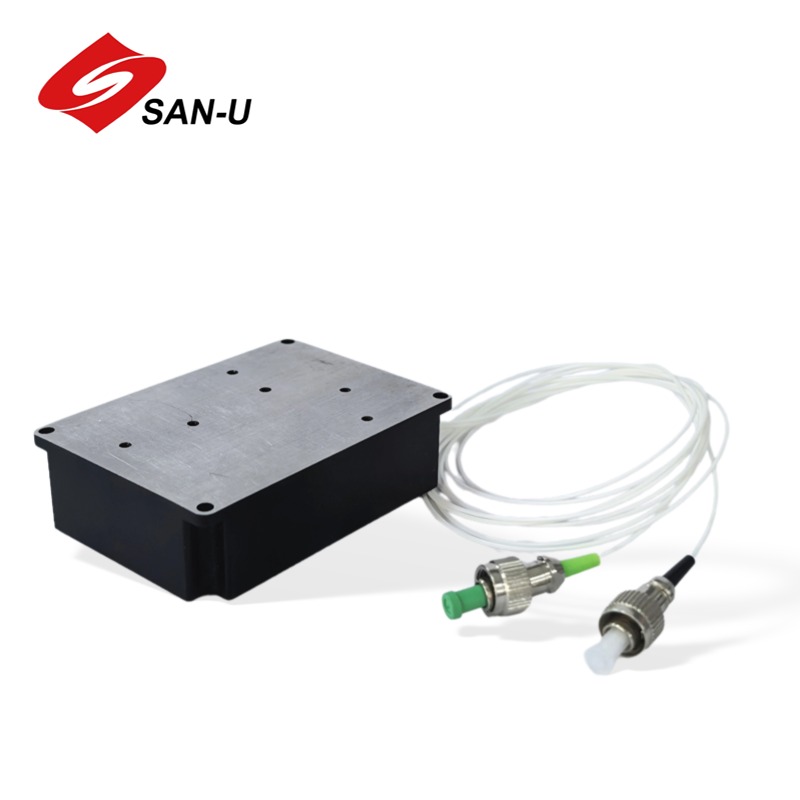

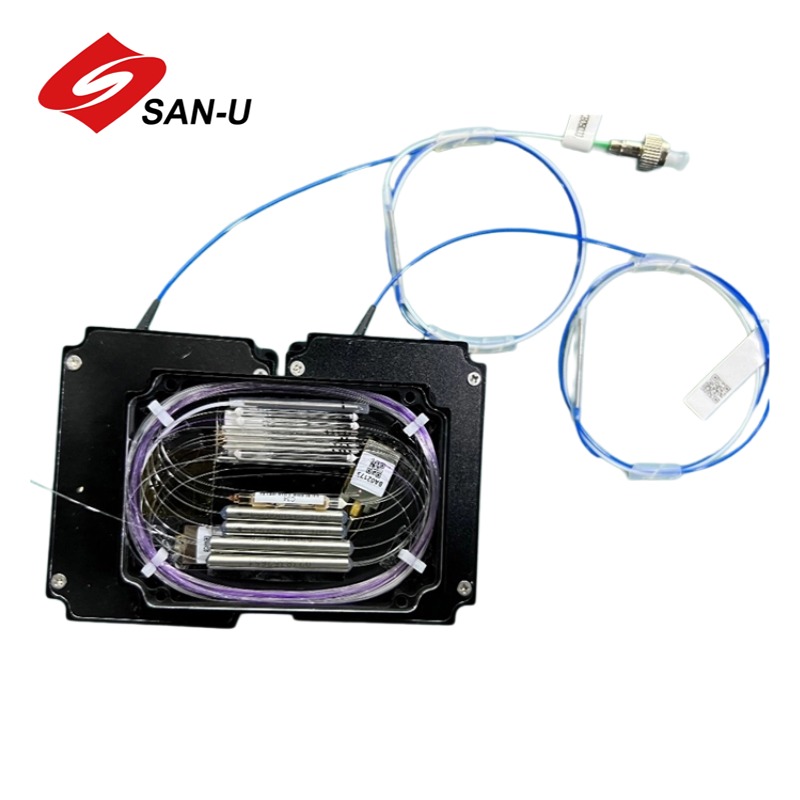

This product is a human-eye-safe 1550nm pulsed fiber laser source developed by SAN-U Optronics. It features high peak power, high electro-optic efficiency, low ASE and nonlinear effect noise, and a wide operating temperature range. The product is suitable for use in lidar systems and various sensors.

Wavelength :
1550nm

Inquiry now

Product Details

Features:

Specifications:

bsolute Maximum Ratings

参数	单位	最小值	典型值	最大值	说明
工作方式		脉冲
中心波长	nm	1547	1550	1553	可定制CWL 1535±3nm
脉宽(FWHM)	ns	1		10	可调
重复频率	MHz	0.1	0.5	2	可调
平均功率	W	0.95	1	2	@3ns, 500kHz, 25C
峰值功率	kW		1.5①	2.0②
偏振态	NA	随机
触发模式	NA	外触发
脉冲出光延迟抖动	ps		80	100
电功耗	W			13	输出1W
工作电压	V	9	12	13
工作温度(@壳体)	℃	-40		85
存储温度	℃	-40		105
封装尺寸	mm	50x70x19
重量	g			100
光输出方式		FC/APC头或光纤准直输出
输出光纤长度	m	定制			900T套管
电接口型号		MOLEX 505567-1281

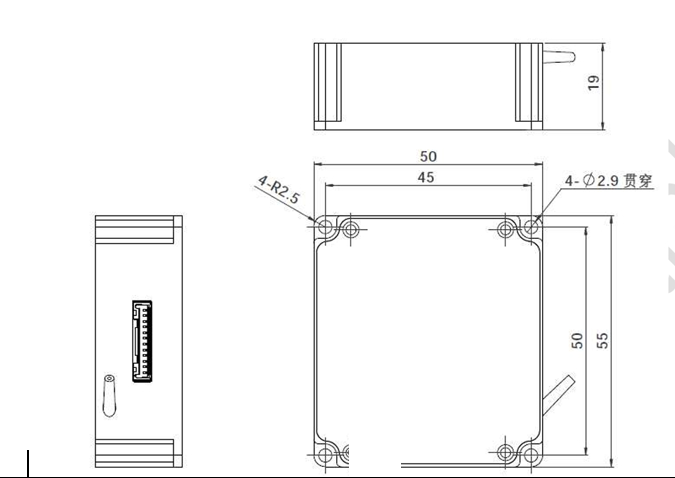

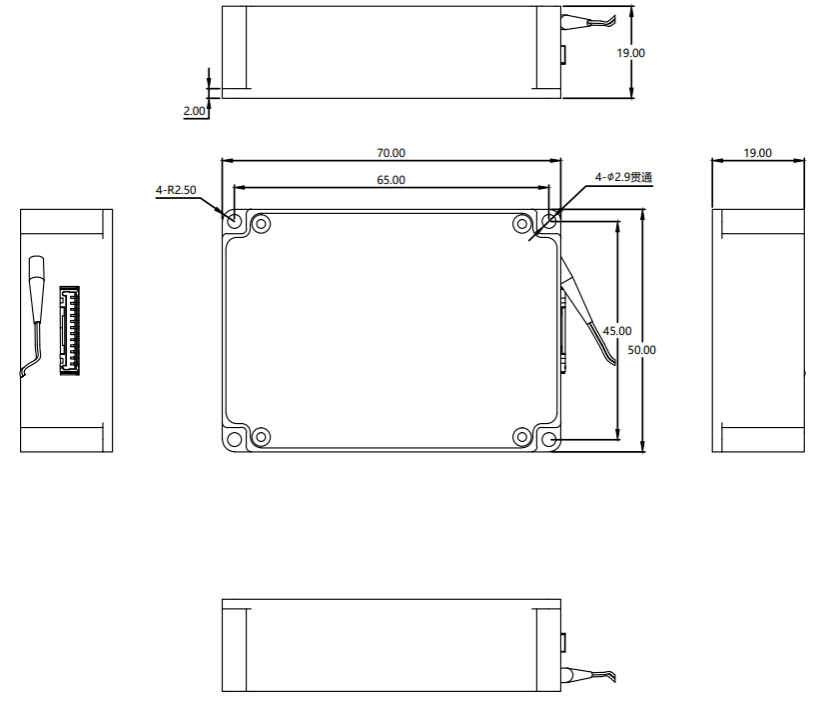

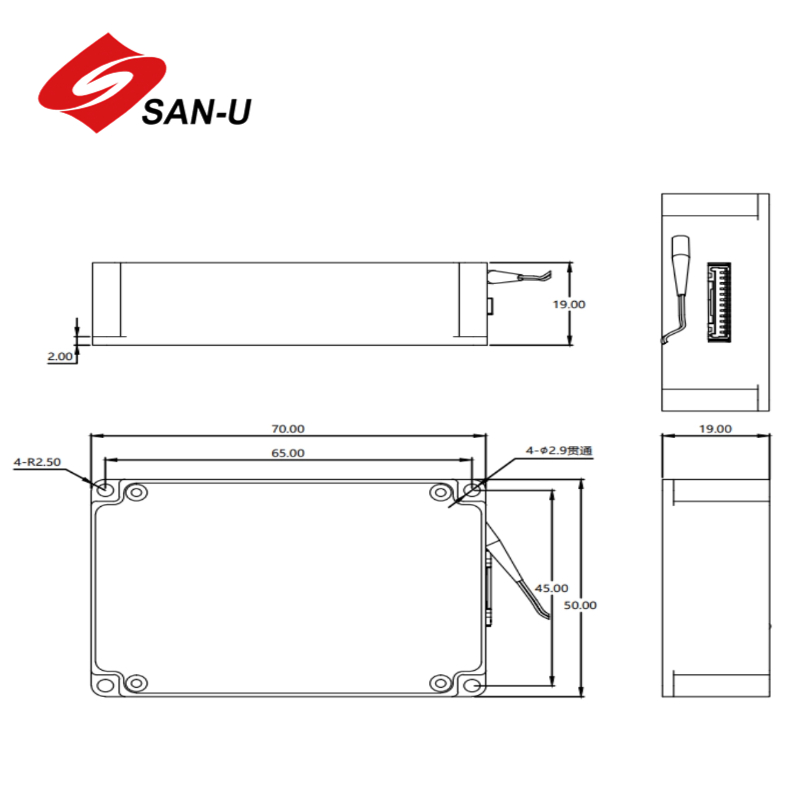

Mechanical Dimensions:

Xiamen San-U Optronics Co., Ltd was established in 2001 year, which is a new high-tech enterprise

specializing in R&D and massproduction in highspeed semi-conductor Laser / detector , optical

components and module.San-U products are widely used incloud computing, HTTP,sensor detector

territory ,optical telecommunication,and so on.

San-U Company established “Xiamen University San-U Optronics Technology R&D Center” and

“Xiamen Optical communicationcomponents test key lab” Successively based on Industry-University

Cooperation， San-U R&D team burden more t han 20projects of National,Province and city class

innovation fund and technology aid, which possesses 4 items innovation patents andmore than 20

realistic new type patents. The results and findings of R&D by San-U are all turned into mass

production and becomethe market hot points products. San-U is awarded as ‘Xiamen Leading

enterprise as technology small giants’ , ‘Fujian Innovation enterprise’. Nationa l Innovation Fund

Project - - 10G Semi-conductor Laser and components has also been verified. San-U company

has priority to enter Chinese domestic market by replace import products. San-U has already

established Automatic Chip Auto assembly line, components auto coupling production line and

has already access mass production. San-U production line has already realize the information

and intelligence, which is atleading position within domestic. Optical components automatic mass

production technology development project has already gained the National Innovation Fund’s

major projects support. In optical communication industry transformation and upgrading to

automation scale mass production aspect has demonstrative effect.
